Precast Concrete Connection Grout Sleeve Couplers In Construction12-40mm

  • 1
  • 2
  • 3

Brand Name : Qifu

Place of Origin : Chongqing, China

MOQ : 1000 pieces

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10,000 units per month

Delivery Time : 30 days

Packaging Details : 1000 pieces

Model : 12-40 mm

Raw material : 45# carbon steel

Type : semi-grouting/full grouting

Tensile strength : more than 540MPa, 100% of the test bar fracture

Certificate : SGS&CE certification

Application : prefabricated houses and prefabricated bridges

Product name : Grouting sleeve connector for precast concrete connection

Contact Now

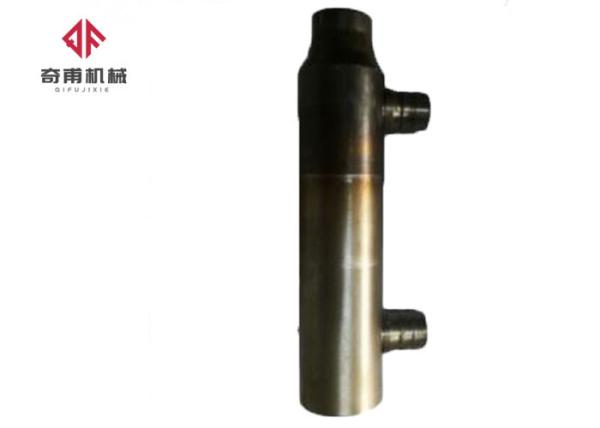

Precast concrete connection grouting sleeve connector

product description:

There are two types of products, one is a full grouting coupler (connected with steel bars through concrete-based grouting material), and the other is a half/semi-grouting coupler (one end is connected by thread, the other end is connected by concrete grouting).

use:

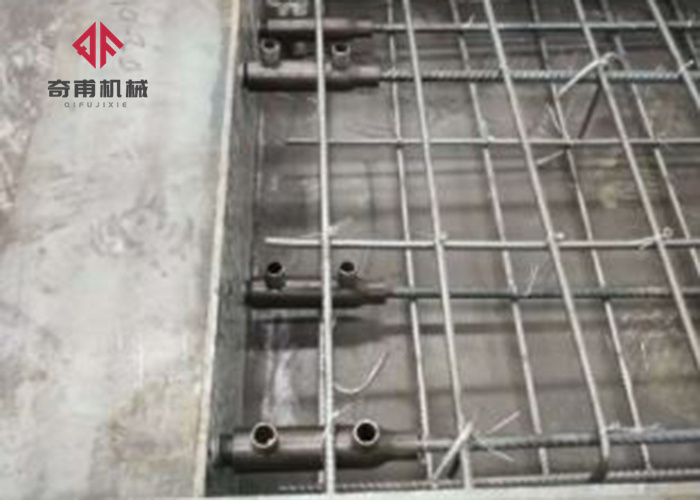

In practical engineering applications, the sleeve is pre-embedded into the connecting end of the component during the production of the prefabricated component, and the exposed steel bar of another connecting component is inserted into the sleeve during on-site construction. After the component is installed and positioned, the steel is connected by grouting.

Place of Origin: Chongqing, China
Model: 12-40 mm
Application range: prefabricated houses and prefabricated bridges
Product name: Grouting sleeve connector for precast concrete connection
Raw material: 45# carbon steel
Type: semi-grouting/full grouting
Tensile strength: more than 540MPa, 100% of the test bar fracture
Certificate: SGS&CE certification

Precast Concrete Connection Grout Sleeve Couplers In Construction12-40mm

Packing and shipping:


Sales unit: single item
Single package size: 18X6X15 cm
Packing type: wooden box and pallet, first weave a woven bag (20-180 pcs/bag) according to the size of the woven bag, then put it in a plywood box, wrap it with PE film or pack it according to your special requirements.
