Steel Grouting Connection Half Grout Rebar Coupler
Chongqing Qifu Machinery Co., Ltd. mainly produces steel sleeves, technical development of sleeve machinery and equipment and production of xihuhe import and export business, and has accumulated rich production experience, has a capable staff team, and has advanced production and processing equipment. Major engineering construction units provide sleeve link products, and have participated in the construction of national key development projects for many times. Friends from all over the world are welcome to visit and look forward to cooperating with you to create brilliance!
Our advantage:
Grout Sleeve is a mechanical splicing designed for the connection of precast elements.Each Grout sleeve features a threaded end (used for the connection to reinforcement at the precast factory) and a wide cavity to perform a grout connection at site.At the construction site, connection is made in a few seconds by injecting/pouring non-shrink grout into the cavity.
Performance:
- Mechanical Anchorage
- Low Cycle (large strains) fatigue performance
- Brittle Fracture resistance
OEM support.
Specifications: full grouting sleeve D12 D14 D16 D18 D20 D22 D25 D28 D32 D36 D40; half grouting sleeve D12 D14 D16 D18 D20 D22 D25 D28 D32
| Packaging | Carton &wooden boxes, nylon bags and as customer’s special requests |

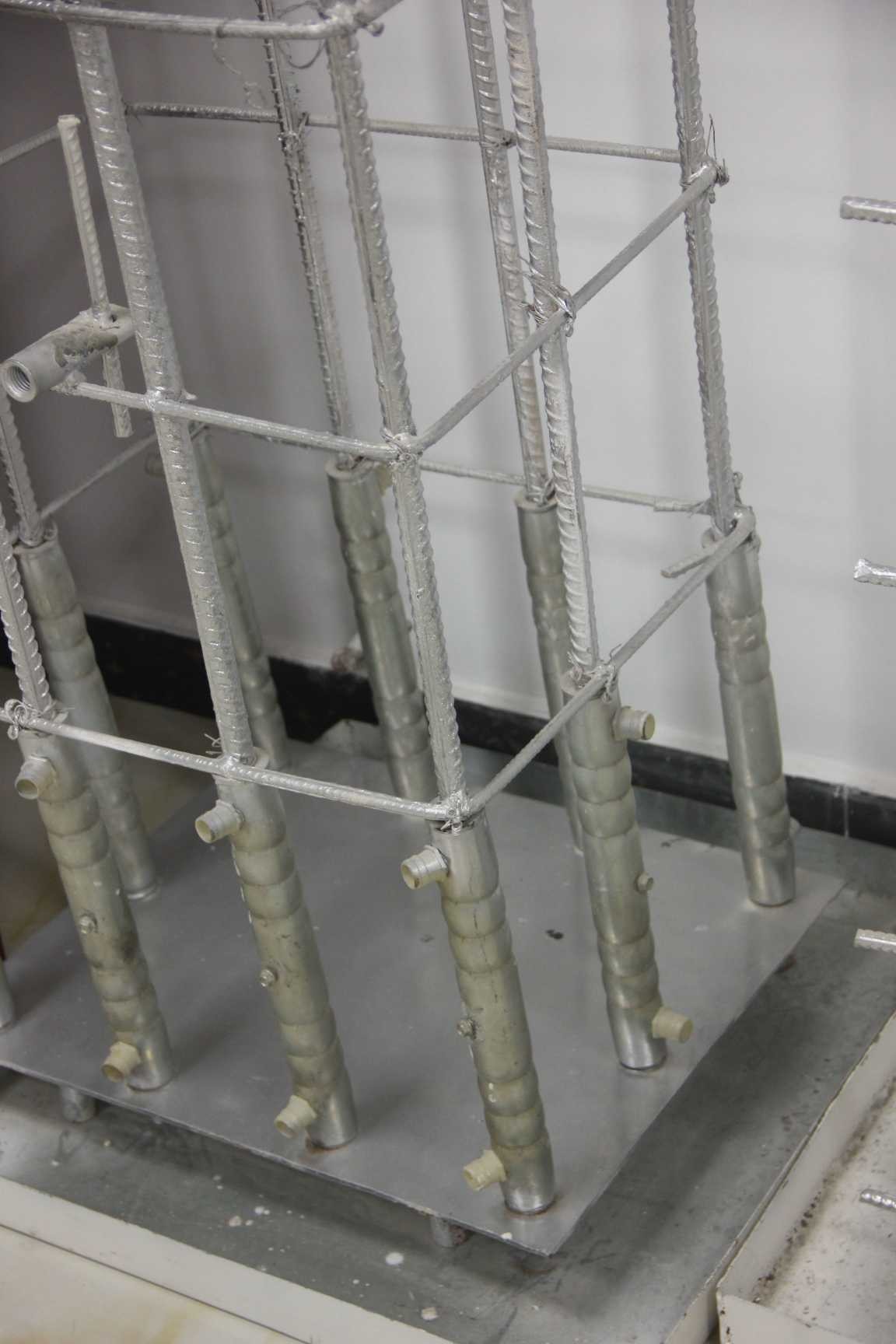

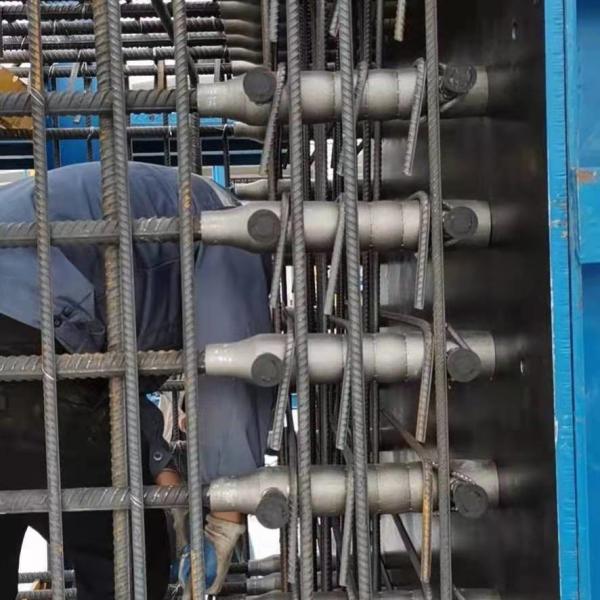

| Application | Grout sleeves are used in precast column or precast wall. |
Semi-grouted steel sleeve fully grouted steel sleeve assembled construction grouting sleeve spot straight hair
The grouting sleeve is a combination of specially processed sleeves, matching grouting materials and steel bars. When the steel bars are coagulated, the fast-hardening shrinkage grouting material is injected, and the steel bars and the sleeves are connected by the bonding and occlusal effect between the materials. The sleeve grouting joint has the advantages of reliable performance, wide applicability and easy installation.
Features:
1. Stable performance: The grouting filling method does not apply any external force and heat to the steel bar, so it will not cause the expansion and contraction of the steel bar or generate residual stress;
2. Support customization: complete specifications, a large number of stock, can process customized products according to the needs of various departments with drawings and samples;
3. Standard process: the thread profile is good, the production is excellent, and the steel bar link strength is high.
| Function: | connect two steel bars |
| Certification: | International Organization for Standardization |
| Material: | #45 carbon steel |
| Model: | D12MM-D32MM |
| Thread angle: | 60°, 75° |
| Parameters of semi-grouted sleeves- bridge connection |
| Grout Sleeve Model | Bar Diameter | Outer Diameter | Inner Diameter | Length | Grout Hole Center Position | The Hole Location Of The Outflow Slurry | On-site Construction Reinforcement Insertion Depth | Factory Installed Rebar Insertion Depth |
| GTB4J-32 | Φ32 | 70 | 53 | 394 | 28 | 94 | 96 -116 | 12.6 |
| GTB4J-36 | Φ36 | 78 | 57 | 440 | 30 | 110 | 112 -132 | 14.6 |
| GTB4J-40 | Φ40 | 89 | 65 | 480 | 30 | 126 | 128 -148 | 16.6 |
| Parameters of semi-grouting sleeve-Building |
| Grout Sleeve Model | Bar Diameter | Connecting bar diameter | Outer Diameter | Length | Minimum hole diameter of steel bar insertion opening at grouting end of sleeve | Grout Hole Center Position | The Hole Location Of The Outflow Slurry | Grout end connecting steel bar Twisting depth | Internal thread nominal diameter | Internal thread pitch | Internal thread profile angle | Internal thread depth |
| GTB4J-12 | Φ12 | Φ12/Φ10 | 34 | 140 | 23 | 28 | 94 | 96 -116 | 12.6 | 2 | 75° | 14 |
| GTB4J—14 | Φ14 | Φ14/Φ12 | 36 | 156 | 25 | 30 | 110 | 112 -132 | 14.6 | 2 | 75° | 15 |
| GTB4J-16 | Φ16 | Φ16/Φ14 | 39 | 174 | 28 | 30 | 126 | 128 -148 | 16.6 | 2.5 | 75° | 18 |
| GTB4J-18 | Φ18 | Φ18/Φ16 | 41 | 193 | 29 | 35 | 142 | 144-164 | 18.5 | 2.5 | 75° | 21 |
| GTB4J-20 | Φ20 | Φ20/Φ18 | 43 | 211 | 30 | 40 | !58 | 160-180 | 20.5 | 2.5 | 75° | 23 |
| GTB4J-22 | Φ22 | Φ22/Φ20 | 46 | 230 | 32 | 40 | 174 | 176-196 | 22.5 | 2.5 | 75° | 25 |
| GTB4J-25 | Φ25 | Φ25/Φ22 | 52 | 260 | 36 | 40 | 198 | 200-220 | 25.7 | 3 | 75° | 28 |
| GTB4J-28 | Φ28 | Φ28/Φ25 | 60 | 292 | 43 | 40 | 228 | 224-244 | 28.7 | 3 | 75° | 31 |
| GTB4J-32 | Φ32 | Φ32/Φ28 | 66 | 330 | 47 | 40 | 263 | 256-275 | 32.7 | 3 | 75° | 35 |
Note: 1. The bottom dimension in the table is the value of the sleeve raw material that meets the mechanical performance requirements of No. 45 steel in GB/T699-2015 (the measured yield strength and ultimate strength should not be less than J355-2015 Rebar Sleeve Grouting Connection Application Technology The standard specified in the regulations), the minimum size that can be selected when the sleeve manufacturer has a good level of quality control.
2. The minimum size of the measured sleeve should be measured in at least two directions, and the minimum value should be used for judgment.
3. The customer's special customized sleeve must meet the mechanical performance parameters (strength requirements) of the sleeve as a premise, and the size can be flexibly controlled. |
