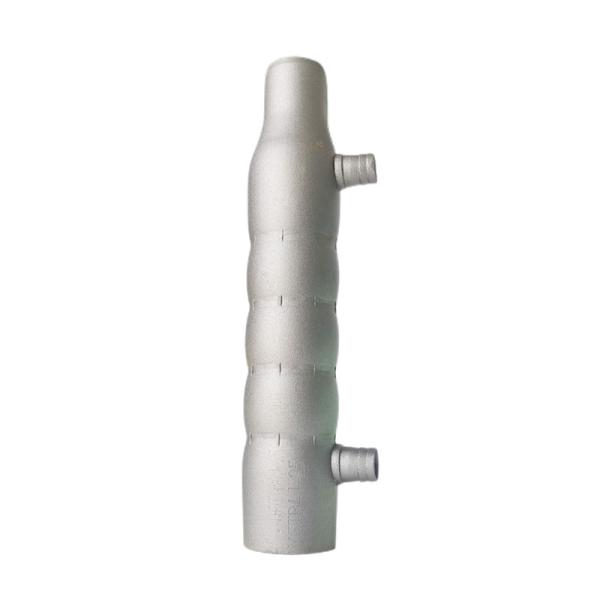

Rib Peeling Thread Carbon Steel Grouted Sleeve for Bridges
Introduction:
The grouting coupler is a combination of specially processed couplers, matched grouting materials and rebar. When connecting rebar, fast-hardening non-shrinking grouting materials are injected, the rebar and coupler are connected by the bonding and occlusal effect between the materials. The grouting coupler has the advantages of reliable performance, wide applicability and easy installation.
This connection method makes up for the shortcomings of traditional steel structure connection methods (welding and bolt connection), and has been rapidly developed and applied.
Grouting sleeve connection technology is suitable for reinforced concrete structure engineering, steel structure engineering, bridge engineering, offshore oil drilling platform engineering, offshore wind power tower and other fields. Grouting sleeve connection technology is a new type of steel structure connection method due to the needs of engineering practice and technological development.
Specification:
| Model | Diameter for rebar dia | Out diameter | Inner diameter | Weight
| Length
| Grout hole center position | Slurry hole location | Rebar insert depth for on-site construction | Rebar insertn depth for factory installed | Application |
| GTB4J-32 | Φ32 | 70 | 53 | 4.3 | 394 | 75 | 300 | 207～320 | 207～320 | Bridges |
| GTB4J-36 | Φ36 | 78 | 57 | 5.74 | 440 | 75 | 340 | 324～360 | 324～360 |
| GTB4J-40 | Φ40 | 89 | 65 | 9.31 | 480 | 75 | 380 | 360～400 | 360～400 |
Advantage:
1. reduce the workload of steel pre-processing
2. the steel bar will not produce secondary stress and deformation during on-site construction
3. accept relatively large T deviation
Application areas:
1) reinforced concrete structure engineering
2) steel structure engineering
3) bridge engineering
5) Highway constructure
6) offshore oil drilling platform
7) offshore wind power tower
| product name | Semi-grouted coupler |
| Origin | Chongqing, China |
| Color | gray |
| Model | GTJB4-32 |
| Diameter | 32mm |
| Inner thread type | upsetting and rib peeling |
| Inner thread angle | 60° and 75° |
| Material | High quality #45 carbon steel |
| Applicable industries | various kinds of construction engineering like building, bridge, highway... |
Q&A
Q1. What are the advantages of your machine?
A: This equipment has the advantages of high efficiency, stable performance, and good precision Q&A. It is widely used in the construction industry and steel bar processing enterprises.
Q2. What model should I choose for this machine?
A: You can tell us your reinforcement information, such as diameter, strength, and shape you want to make, and we will recommend a suitable model for you.
Q3. If our operators can't use it, do you provide training for this machine?
A: Do not worry operations.
First of all, we will provide a detailed manual for your reference.
Secondly, we made a detailed video to show you how to operate this machine.
Finally, we provide free training in our factory, and you can send your people to our factory to learn how to operate before delivery.
